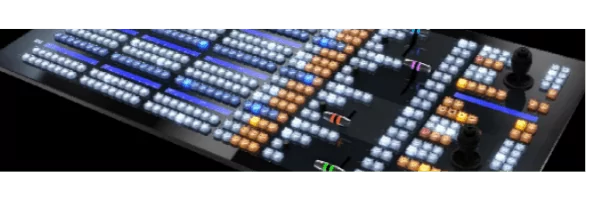

4-Stripe
ESPECIFICACIONES TÉCNICAS
| Stripes | 4 x panel stripes independently configurable for switcher, M/E, PREVIZ, or NDI™ output router operation • Dynamic LCD crosspoint label displays • Support for bank, layer and key delegation • Support for multi-engine control |
| Crosspoints | 72 x crosspoints per stripe (24 buttons with 3 delegate banks) |
| COMPs | Direct panel access to VMC1 Video Mix Engine COMP Bin presets |
| Macro | Macro mode and number pads supporting attachment and activation of user-configured macros |
| Media | 2 x media player control keypad with player delegation and command buttons |
| MEM | Direct panel access to VMC1 Video Mix Engine switcher and M/E MEMs |
| T-Bars | 4 x multi-mode T-Bars (1 per stripe) with dynamically variable illumination and support for BKGD video layer and key layer delegation • Fade • Transition • Fade to Black • LiveSet™ Zoom |
| Joysticks | 2 x multi-mode joysticks (3-axis) supporting stripe, layer and key delegation • Position/Scale • Rotate • Crop • LiveSet virtual camera control • PTZ camera control • Media player shuttle |
| NIC | 1 Gigabit NIC |
| Physical | VMC1 4S chassis with 25W PSU • 42.2 x 21.26 x 6.13 in (107.2 x 54.0 x 15.6 cm) • 49.75 lbs (22.57 kg) |
